Obras de carretera Marini Magnum 140 * mobile asphalt plant nueva

État :
  •  d''occasion


Domaine d''application: Construction
Matériel d''application: Asphalte
État général: très bon
État technique: très bon
État optique: très bon
Veuillez contacter Dirk Schönbohm ou Robert Boock pour plus d''informations

= Weitere Optionen und Zubehör =

- Konstrollsystem
- Kontrollraum
- Staubfilter/Staubfang

= Anmerkungen =

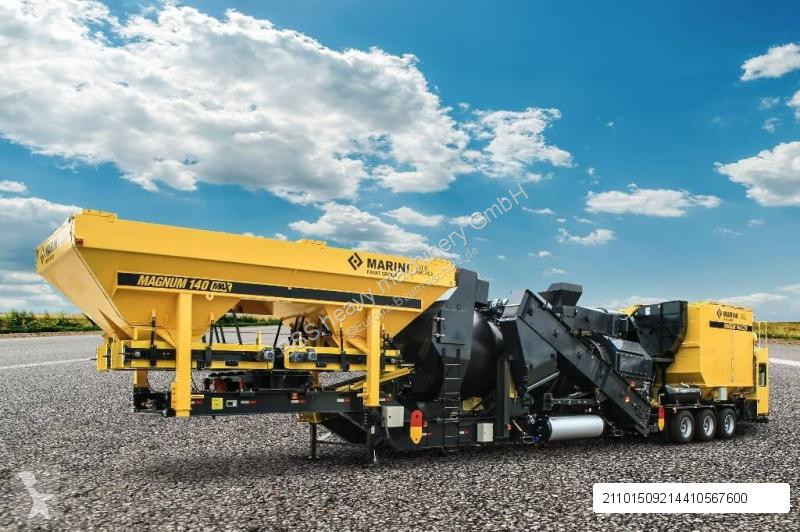

new Marini Magnum 140 mobile asphalt mixing plant

year: NEW
capacity: up to 140 t./h
1 year guarantee

- calorific power of the fuel 9,600 kcal / kg;
- material passing through the #8 (2,38mm) sieve is no more than 20%;
- The equipment was developed in order to facilitate the transportation as much as possible without the need of pilot cars. Simply hook up the equipment to the asphalt binding agent storage and fuel system.
- Chassis is built with a highly resistant I-Beam with a forged king pin, 3 axles with special tires, suspension springs, air brakes, tank, and safety valve, highway signaling system, mechanical foot with telescopic support.
Quadruple feed bin (two-by-two) with 3,80mm wide opening and a capacity of 6m3, completely designed to support the strains during the unloading of materials. Regulated floodgate for flow of aggregates.
- Automatic vibrator system for one bin, which facilitates the flowing of fine aggregates with high humidity ratios in one of the bins.
- Feeding belts with 20" wide canvas supported by 4" rollers in "V" with permanent lubrication. The gear box is hooked directly to the drum shaft. Drums are regulated with oscillating and shielded bearings. 3-hp electric motor.
- Conveyor belt in U-Beam, 24 wide canvas supported by 4 rollers in V shielded rollers actuated by a 7.5hp electric motor.
- Sieve with a screen for eliminating oversized materials.
- Drum dryer and mixer with heat insulation, four driven supports rollers made of high carbon steel driven by gear box, electric motor 15hp.
- rotational external mixer
- burner with fuel spraying by gear pump 12.000.000 Kcal/h
- Dry filtering system that consists of dust collecting system
- Control system Sistex

complete offer and details by request * more machines, mixing plants and trucks on our website afficher les coordonnées

= Weitere Informationen =

Verwendungszweck: Bauwesen
Verwendbares Material: Asphalt
Allgemeiner Zustand: sehr gut
Technischer Zustand: sehr gut
Optischer Zustand: sehr gut
Wenden Sie sich an Dirk Schönbohm oder Robert Boock, um weitere Informationen zu erhalten

Anvendelsesområde: Konstruktion
Gældende materiale: Asfalt
Overordnet stand: meget god
Teknisk stand: meget god
Visuelt udseende: meget god
Kontakt Dirk Schönbohm eller Robert Boock for yderligere oplysninger

= Additional options and accessories =

- Control room
- Control system
- Dust collector

= Remarks =

new Marini Magnum 140 mobile asphalt mixing plant

year: NEW
capacity: up to 140 t./h
1 year guarantee

- calorific power of the fuel 9,600 kcal / kg;
- material passing through the #8 (2,38mm) sieve is no more than 20%;
- The equipment was developed in order to facilitate the transportation as much as possible without the need of pilot cars. Simply hook up the equipment to the asphalt binding agent storage and fuel system.
- Chassis is built with a highly resistant I-Beam with a forged king pin, 3 axles with special tires, suspension springs, air brakes, tank, and safety valve, highway signaling system, mechanical foot with telescopic support.
Quadruple feed bin (two-by-two) with 3,80mm wide opening and a capacity of 6m3, completely designed to support the strains during the unloading of materials. Regulated floodgate for flow of aggregates.
- Automatic vibrator system for one bin, which facilitates the flowing of fine aggregates with high humidity ratios in one of the bins.
- Feeding belts with 20" wide canvas supported by 4" rollers in "V" with permanent lubrication. The gear box is hooked directly to the drum shaft. Drums are regulated with oscillating and shielded bearings. 3-hp electric motor.
- Conveyor belt in U-Beam, 24 wide canvas supported by 4 rollers in V shielded rollers actuated by a 7.5hp electric motor.
- Sieve with a screen for eliminating oversized materials.
- Drum dryer and mixer with heat insulation, four driven supports rollers made of high carbon steel driven by gear box, electric motor 15hp.
- rotational external mixer
- burner with fuel spraying by gear pump 12.000.000 Kcal/h
- Dry filtering system that consists of dust collecting system
- Control system Sistex

complete offer and details by request * more machines, mixing plants and trucks on our website afficher les coordonnées

= More information =

Field of application: Construction
Applicable material: Asphalt
General condition: very good
Technical condition: very good
Visual appearance: very good
EPA Marked: yes
Please contact Dirk Schönbohm or Robert Boock for more information

Ámbito de aplicación: Construcción
Material de aplicación: Asfalto
Estado general: muy bueno
Estado técnico: muy bueno
Estado óptico: muy bueno
Póngase en contacto con Dirk Schönbohm o Robert Boock para obtener más información

= Aanvullende opties en accessoires =

- Control room
- Control system
- Dust collector

= Meer informatie =

Toepassingsgebied: Bouw
Toepassingsmateriaal: Asfalt
Algemene staat: zeer goed
Technische staat: zeer goed
Optische staat: zeer goed
Neem voor meer informatie contact op met Dirk Schönbohm of Robert Boock

Obszar zastosowania: Budownictwo
Zastosowany materiał: Asfalt
Stan ogólny: bardzo dobrze
Stan techniczny: bardzo dobrze
Stan wizualny: bardzo dobrze
Aby uzyskać więcej informacji, należy skontaktować się z Dirk Schönbohm lub Robert Boock

Область применения: Строительство
Используемый материал: Асфальт
Общее состояние: очень хорошее
Техническое состояние: очень хорошее
Внешнее состояние: очень хорошее
Свяжитесь с Dirk Schönbohm или Robert Boock для получения дополнительной информации
